KV101520-DX



TRIBAND YAGI ANTENNA 10 ELEMENTS 10/15/20 METERS

KV101520-DX — The Proven Triband Yagi from KV ANTENAS

A Proven Design. Trusted by Amateur Radio Operators. Performance Across Three Bands.

The KV101520-DX is the best-selling triband antenna in the KV ANTENAS product lineup, establishing itself as one of the flagship models in our portfolio. Its proven design combines applied engineering, robust construction, and a carefully developed configuration for operation on the 10, 15, and 20-meter bands.

Featuring 10 elements and a single coaxial feed line for all three bands, the KV101520-DX provides an integrated solution for amateur radio operators seeking a high-performance directional antenna. All elements are full-size, with no loading coils, prioritizing an efficient antenna architecture specifically designed for multiband operation.

Its configuration includes 4 elements for 10 meters, 3 elements for 15 meters, and 3 elements for 20 meters, totaling 10 elements across the three bands.

The success of the KV101520-DX reflects a design that combines functionality, construction quality, and practical installation solutions. Its established sales record reinforces the trust it has earned among amateur radio operators, making it a proven choice for stations that value engineering and reliability.



Construction Features

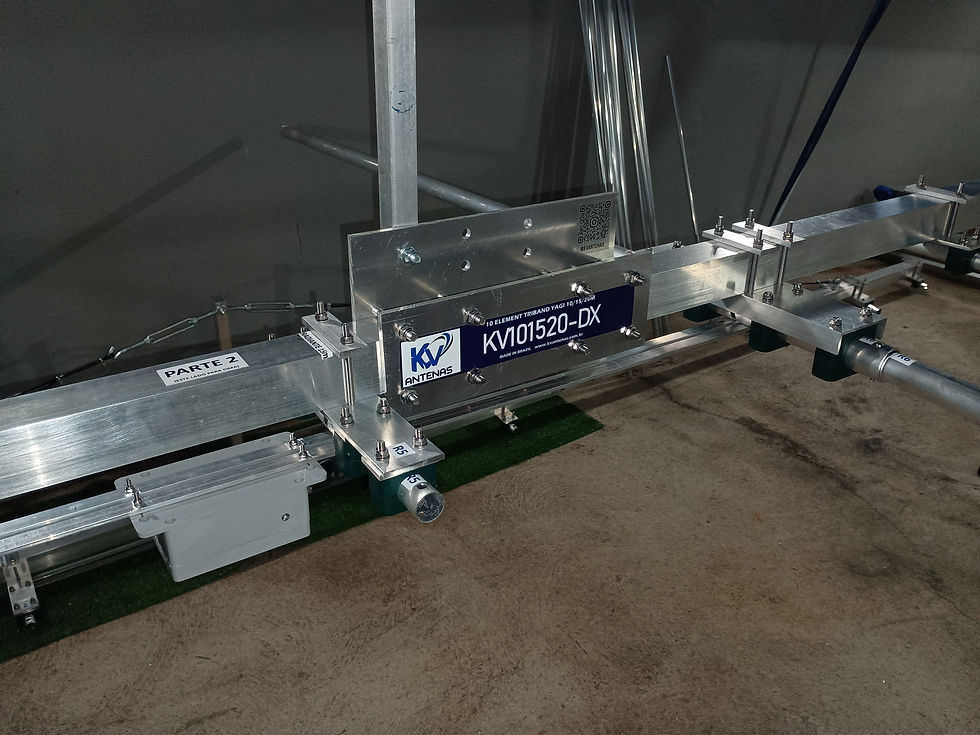

  • Reinforced boom: 2-inch square aluminum tubing with a truss system for increased structural rigidity.

  • Pre-assembled support system: Simplifies antenna assembly and installation.

  • Modern, robust construction: Designed to combine mechanical strength and long-term durability.

  • Stainless steel hardware: Provides improved corrosion resistance and extended service life for fastening components.

  • High-quality polypropylene (PP) clamps: Used to secure the elements to the boom.

  • Integrated triband feed system: A single coaxial cable for operation on the 10, 15, and 20-meter bands.

  • Full-size elements: No loading coils, with a dedicated element configuration for each band.



Element Configuration by Band

​

10 meters: 4

15 meters: 3

20 meters: 3

Total: 10 elements

​

KV ANTENAS — Robustness, Technology and Antenna Performance.

The KV101520-DX is more than just a triband antenna. It is a proven design that has earned its place among amateur radio operators and reflects KV ANTENAS' experience in developing high-performance HF antenna solutions.

​​

TECHNICAL SPECIFICATIONS BY BAND:

​

10 METER BAND:

Gain: 13.8 dBi

F/B: 25.00 dB

Bandwidth (SWR < 1.5:1): 800Khz

Active elements:   4

15 METER BAND:

Gain: 12.9 dBi

F/B: 22.5 dB

Bandwidth (SWR < 1.5:1): 450Khz

Active elements:   3

20 METER BAND:

Gain: 12.5 dBi

F/B: 20.00 dB

Bandwidth (SWR < 1.5:1): 350Khz

Active elements:   3

​​

GENERAL TECHNICAL SPECIFICATIONS:

​

Max. Power: 3KW PEP

Impedance: 50ohms

Boom Length: 6.00m

Largest Element: 10.90m

Turning Radius: 6.00m

Weight: 32Kg

Wind survival: 140 km/h



COMMERCIAL CONDITIONS:



Price: $ 950.00 USD



Payment methods: Transfer Bank or PayPal



​

NOTE .1: Shipping at the buyer's expense

NOTE 2: Check delivery time
