Engineering High Performance Antennas
KV280-MONSTER
2-ELEMENT YAGI ANTENNA FOR 80 METERS WITH KV80-BOX TUNER KIT
KV280-MONSTER – Power, Ruggedness, and Brazilian Technology
The KV280-MONSTER is the ideal antenna for those seeking high performance in the 80-meter band. Featuring a modern design and reinforced construction, this 2-element Yagi combines ruggedness, durability, and 100% Brazilian technology.
Engineered to handle up to 4 kW PEP, the KV280-MONSTER delivers high efficiency and bandwidth across the entire range (adjustable between 3500 and 3950 kHz) via the KV80-BOX tuning kit attached to both elements (driven element and reflector).
Every detail has been designed for maximum reliability, utilizing a special aluminum alloy, high-strength fasteners, and premium-quality insulators. The result is an antenna capable of withstanding the harshest conditions while maintaining exceptional performance and a long service life.
The KV280-MONSTER embodies KV ANTENAS' commitment to providing advanced engineering solutions for radio amateurs who demand the best in power, precision, and performance.
KEY FEATURES:
-
3” (76 x 76mm) square-tube boom with top and side reinforcement;
-
8mm-thick aluminum center plate with 6 U-bolts for mounting on masts up to 2-1/2 inches;
-
Elements made of round aluminum tubing, with a maximum diameter of 2” (50.8mm);
-
Dual-element tuner kit with remote controller;
-
Aluminum profiles with UV-resistant STAUFF polypropylene clamps to secure elements to the boom;
-
Stainless steel hardware;
-
Dismantlable into sections of up to 2.3 meters to enable low-cost transport;
BOOM
The KV280-MONSTER boom is constructed from 3” (76 x 76 mm) square tubing and divided into four sections interconnected by a reinforced joint system consisting of 3” angle brackets and stainless steel bolts. The use of square tubing offers superior mechanical strength compared to round tubing and eliminates the need to level individual elements, ensuring ease of assembly and perfect alignment.
To withstand high-intensity crosswinds, the gondola also features structural reinforcements—comprising rods, turnbuckles, and steel cables—ensuring maximum rigidity and durability even under the harshest conditions.

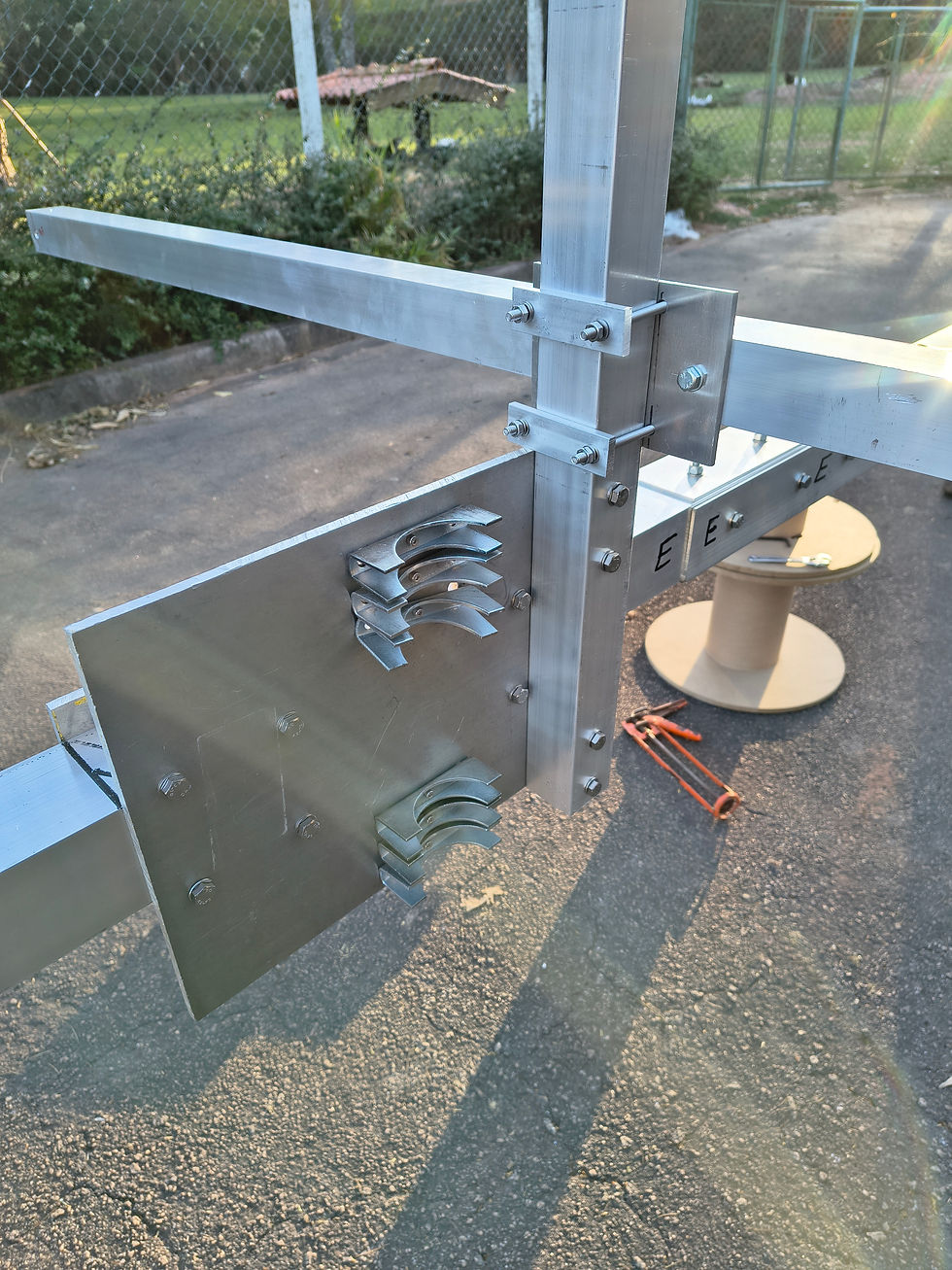

Central Plate
The central plate of the KV280-MONSTER is manufactured from an 8 mm thick aluminum sheet, ensuring high structural rigidity and torsional strength.
The assembly utilizes six 2½-inch U-bolts, providing a firm, secure attachment to the mast with an even distribution of weight and mechanical forces across the six mounting points. This design ensures maximum stability and durability, even under extreme wind and load conditions.
Elements:
The elements of the KV280-MONSTER are constructed from high-quality aluminum tubing, ranging from 2” (50.8 mm) to ¾” (19 mm) in diameter, with wall thicknesses of 3.17 mm, 2.38 mm, 1.58 mm, and 1.00 mm, respectively. These tubes are mounted onto robust aluminum profiles using STAUFF clamps and stainless steel hardware, ensuring excellent mechanical strength, durability, and precision in element alignment.
High-Q Coils:
The KV280-MONSTER utilizes high-Q coils from KV ANTENAS, developed to ensure minimal electrical losses and maximum radiation efficiency.
These coils are manufactured using high-quality materials and precision construction, delivering superior performance under all operating conditions.
Their use in the KV280-MONSTER ensures precise tuning and long-lasting reliability, contributing to the antenna's exceptional performance across the entire operating range.
KV80-BOX Tuner Kit:
The KV280-MONSTER features the KV80-BOX tuner kit integrated into its two elements, designed to ensure efficient operation across the entire 80-meter band. The KV80-BOX provides precise impedance matching, ensuring the antenna operates with maximum efficiency and minimal signal loss at any frequency within the band. Its robust and reliable design complements the KV280-MONSTER's engineering, offering radio amateurs superior performance, rapid tuning, and safe operation, even under demanding DX and contest conditions.
GENERAL TECHNICAL SPECIFICATIONS:
Gain (peak): 8.9 dBi
F/B (peak): 18 dB
Bandwidth (SWR < 1:1.6): 300 kHz
(using the KV80-BOX Tuning Kit)
Max. Power: 4 kW PEP
Impedance: 50 ohms
Boom: 11.0 m (36 ft)
Longest Element: 22.0 m (72 ft)
Turning Radius: 12.5 m
Weight: 110 kg
Mounting Mast: 2” to 2 1/2”
Wind Area: 1.56 m²
COMMERCIAL CONDITIONS:
Price and delivery time available upon request.
